Application: Outdoor basketball court, multi-sport court, kindergarten playground, futsal court, fitness area

1. Material Specification

Raw Material: Modified virgin polypropylene copolymer (PP)

Additives: UV stabilizer, antioxidant, anti-aging agent, cold-resistant modifier

Environmental Performance: Non-toxic, odorless, 100% recyclable; comply with E1 standard, SGS & RoHS

Structure: Hollow suspended grid with dense column support feet

Connection: Male-female snap interlock, anti-disengagement lock structure

Installation Method: Floating assembly, no glue, no nails

2. Tile Dimension & Physical Parameters

Standard Sizes

304.8 mm × 304.8 mm (12 inch × 12 inch) — mainstream export specification

Optional: 250×250 mm / 340×340 mm / 500×500 mm

Thickness Options

13 mm / 15.8 mm / 16 mm

Surface Patterns

Rice grain pattern, diamond grid, cross anti-slip pattern

Single Tile Weight

280 g – 360 g (304.8 mm specification, depending on thickness)

Suspended Clearance above base ground

10–15 mm, rapid drainage underneath tiles

3. Core Sports Performance Indicators

4. Weather & Mechanical Performance

Operating Temperature Range: -40 ℃ ~ +70 ℃

Waterproof Property: Fully waterproof; hollow structure for fast surface drainage

Impact Resistance: No breakage after 1 m free-fall impact test

Anti-UV Performance: Long-term outdoor use, low fading, no embrittlement

Thermal Expansion Requirement: Reserve 5–10 mm expansion gap along all boundaries

5. Construction & Base Requirements

Base material: Concrete or asphalt pavement

Flatness: Deviation ≤3 mm within any 2 m span

Outdoor drainage gradient: ≥3‰

Expansion joint: Set intermediate expansion joints when venue length exceeds 25 m

Accessories: Matching edge strips, internal & external corner pieces

6. Service Life

Outdoor service life: ≥8 years

Indoor service life: ≥10 years

7. Available Certificates

SGS test report, CE certification, environmental inspection report

Support OEM: Custom colors, printed logo, customized packaging

8. Key Advantages

Fast assembly and convenient disassembly

Good shock absorption to reduce sports injury risk

Anti-slip surface, safe for all weather

Low maintenance, easy cleaning

Adaptable to extreme hot and cold climate

Mixed loading available with artificial grass, basketball hoops and other sports equipment

Short Version (For Product Datasheet / Inquiry Attachment)

Technical Specifications

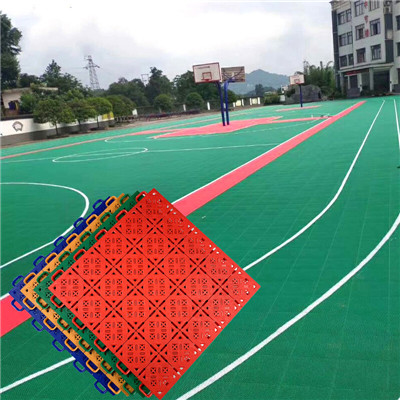

Suspended Interlocking PP Sports Flooring

Material: Modified virgin PP copolymer with UV & anti-aging additives

Size: 304.8×304.8 mm; Thickness:13/15.8/16 mm

Sports Performance

Ball rebound ≥90%; Shock absorption 20%–53%; Friction coefficient 0.50–0.70; Vertical deformation ≥2.3 mm; Load ≥2500 N

Temperature adaptability: -40℃ ~ +70℃, waterproof, outdoor anti-aging

Installation: Floating interlocking laying, no adhesive

Lifespan: ≥8 years outdoor, ≥10 years indoor

Certifications: CE, SGS; OEM & mixed container acceptable
